Important features

As part of a Compuspec solution, the E5 dialler is a cost-effective tool with many of the most important features in a dialler.

Patented technology

The E5 uses patented ZIPPY technology to never break the line during the placement of a call, a failure of so many other diallers.

Latest member of the family

The E5 uses Compuspec's newest technology advancements to route calls to alternative carriers, log basic call statistics, and provide a mechanism for proactive and timely customer retention systems.

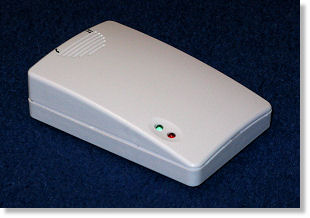

Stylish case

While the E5 feature set can be offered in any of Compuspec's many case options, it is often found in the stylish round case designed specifically for the residential market.

Features

  • Line Powered
  • Company Branding on Case
  • Capable of Being Posted
  • Electronic Serial Number
  • Supports Managed Use
  • Desk Mountable
  • Programming Options
  • Easy Installation
  • Robust Tone Recognition
  • Remote Diagnostics
  • Accepts AC Power
  • Ultra Low Current Consumption

Services

  • Prefix Insertion
  • Selective Call Blocking
  • Message Alerting
  • Web Interaction
  • WAP Interaction
  • Basic Least Cost Routing

Line powered

Requires no external power in most installations.

Company branding on case

Logos screen printed straight onto case in brilliant colour.

Capable of being posted

Case options fit through standard mail slot.

Electronic serial number

Each dialler electronically coded for tracking.

Supports managed use

Managed diallers can deliver more value.

Desk mountable

Stylish case can sit prominently on a desk where company branding can be most effective.

Programming options

Can be shipped pre-programmed.
On-site programming / re-configuration.
Remote programming using a touch tone phone or management platform.

Easy installation

No installation charges because installation is so easy, the end users can install the E5.

Robust tone recognition

Able to recognise and process tones in difficult and noisy environments.

Remote diagnostics

Management platform can be used remotely to highlight and correct call routing problems.

Accepts AC power

Where extra power is required, the E5 can accept a specially designed AC power adapter.

Low current consumption

New technology allows even more units be connected on separate extensions without affecting performance.

"Zero Cost" management

No costs incurred for dialler call back to the management platform.

Dimensions (approx)   25x55x85mm
Weight   50g
Temp. Range   -20°C - +60°C
Power   Line Powered
Idle Current   10 uA
Off-Hook Voltage   4.0VDC (min)
Line Requirement   Loop Start POTS
Line Connection   RJ11 or BT
Ringer Equivalence   <0.1b
Digit Recognition   Tone & Pulse
Dialling Delay (Typical)   0 ms
Access Types   1, 2 & 3 Stage
DTMF Detection Time   Var 10-990ms
DTMF Output   Var 50-990ms
Tone Recognition   50Hz - 3KHz
Surge Protection   260V Transorb
