Overview
The IntelliSUN Batten is a full spectrum light source delivering computer controlled daylight simulation at high efficiency and reliability. The light source is capable of being dimmed from 0 to 100% with colour temperature smoothly transitioning from 2500K to 6000K, all the while maintaining colour rendering better than 95 CRI.
Integrated intelligence supports autonomous wireless interaction with other fixtures and environmental sensors, providing a secure network independent of local WiFi.
Features
Full spectrum throughout tuneable colour temperature range of 2500K - 6000K.
Fantastic Colour Rendering >95CRI.
Excellent Cyanosis Index (COI) < 1.0
Full range dimming 0-100%.
Zero Flicker.
Control
Integrated autonomous wireless control allows full interaction with other fixtures to optimise energy savings and task specific lighting. No additional control system is required.
Optional:
- PIR or Microwave Sensor
- Interaction with Environmental Sensors
- Germicidal Light Spectrum for bacteria sterilisation.
Applications
- Healthcare
- Aged care
- Schools
- Quality Commercial Office
Installation
Direct to ceiling or wall, or suspended
Mechanical
All aluminium
PMMA or Prismatic Acrylic Diffuser options

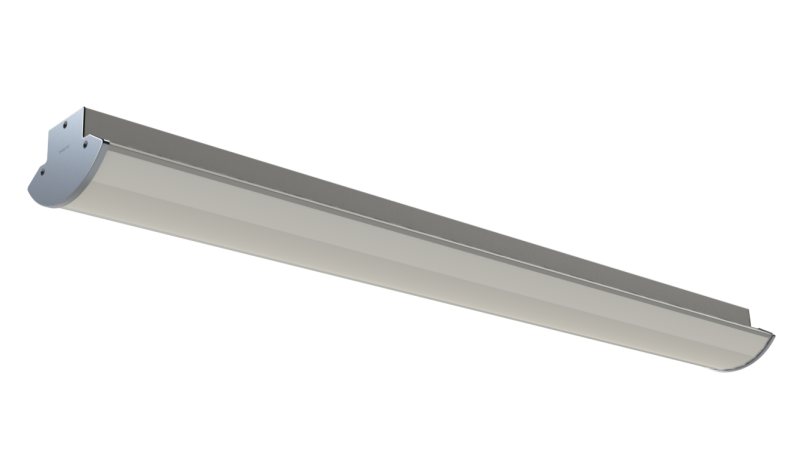

Curved Batten - Length/Width/Height : 1204mm x 157mm x 94mm

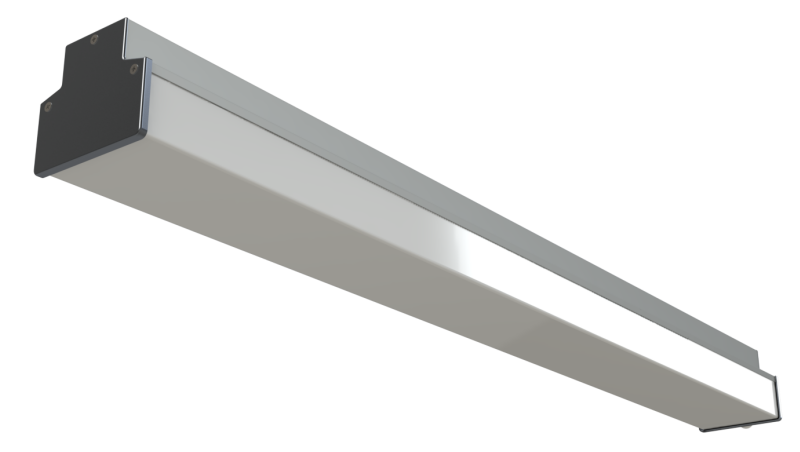

Box Batten - Length/Width/Height : 1195mm x 127mm x 106mm
Weight: Approx 2.9kg
Features
Highly Efficient: 4,500 lumens from 37W for 120lm/W fixture efficacy.
Extremely Long Operating Life: > 60,000 hrs at 90% lumen maintenance with power supply MTBF of 439,000 hrs at 25°C.
Plug and Play: Self contained, self configuring network. No supporting cabling or infrastructure required. Provides data transport for additional sensors.
Occupancy Sensing: PIR or Integrated microwave sensor option allows adaptive lighting strategies and occupancy monitoring.
Environmental Monitoring: Optional integration with Environmental Sensors allows mapping of internal environmental quality and provides mechanisms for additional energy savings through interaction with HVAC systems.
Daylight Harvesting: System wide detection of ambient light conditions reduces amount of “fill in” lighting required.
Task Tuning: Individual (or groups) of luminaires can maintain different target light levels (and colours) to suit tasks being perform in their areas.
Zone Control: Luminaires can be grouped into zones for grouped control strategies (for example, corridor vs racking)
Addressable: Luminaries are uniquely addressable for unique control strategies (or sensor monitoring) independent of electrical wiring.
Continuous Dimming: Light level from 0-100% in 200+ steps for smooth lighting transitions. Ramp rates fully programmable.
Safe: No glass, mercury, UV or IR. No hazardous waste – recyclable.
Future Proof: Meets or exceeds Design Lights Consortium Intelligent Controls requirements 2016. Over-the-air firmware upgrades.
Optional: Germicidal Light source using violet (non-UV) light for room sterilisation.
Technical Data
Light Source: |
||
| Light Source: | 306 x colour Luxeon LEDs | |
| Fixture Output: | 0 - 4,800 lm (Programmable) | |
| Fixture Efficacy: | 100 - 120 lm/W | |
| Fixture Power: | 4 - 40W (Programmable) | |
| Operating Life: | >60,000 hrs L90 Projected L70 > 250k hrs |
|
| Colour Temp.: | White 2500K - 6000K nom. | |
| Colour Rendering: | CRI > 95 R9 > 90 TM-30: Rf 90, Rg 100 |
|
| Cyanosis Index: | 0.98 @ 4000K | |
| Flicker: | Nil | |
| Output: | No UV or IR | |
| Dimming: | 0-100% | |
Power Supply: |
||
| Input Voltage: | 24V DC | |
| Input Power: | <40W (<1.7A @ 24V) | |
| Power Supply: | 85-305VAC to 24V 40W DC | |
| MTBF: | 439,000 hrs @ 25°C | |
Environmental: |
||
| Ambient Temp.: | -20°C to 50°C | |
| Operating Temperature: | 40°C at 25°C ambient | |
