Overview

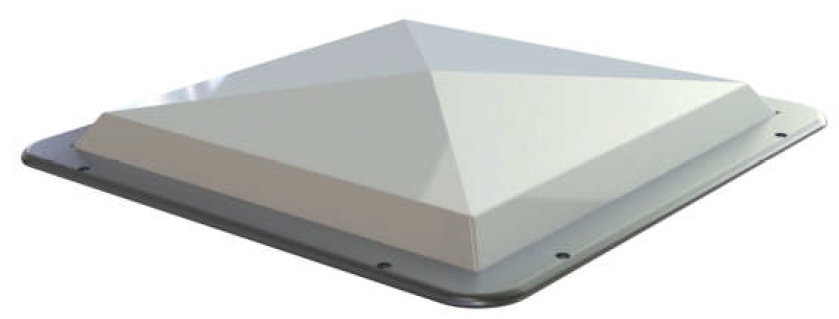

The Panelux Gen III is an ultra high efficiency, fully sealed, rugged LED light fixture with autonomous integrated intelligence designed for extreme environments.
Control
Embedded within each fixture is an autonomous controller that interacts with nearby fittings to optimise power savings while maintaining excellent illumination.
No additional control system is required.
Optional Sensing of:
- Forklifts – RF Beacon.
- General Motion - Microwave.
- Ambient Temperature.
- Ambient Light.
- Hazardous Vapour.
Applications:
- Service Station Forecourts.
- Under Canopy.
- Food Processing.
- Tunnel Lighting.
- Car Parks.
- Coolstore.
- General Industrial Lighting.
Installation
Flush mount or cavity mount options
Mechanical:
The housing is fully corrosion resistant in Aluminium & Stainless Steel with a design life of 20 years.
Body material: Aluminium
Length / Width: 640 x 640mm
Weight: Approx 6.0kg
Features
Highly Efficient
17,000 lumens at 135W for 125lm/W fixture efficacy.
Extreme Operating Life
> 60,000 hrs at 90% lumen maintenance with MTBF of 3,500,000 hrs at 25°C.
Extereme Operating Conditions
Runs down to -40°C with instant start.
Internal temperature monitoring and compensation.
Plug and Play
Self contained, self configuring network. No supporting cabling or infrastructure required. Provides data transport for additional sensors.
Forklift proximity detection
Senses forklift proximity and illuminates a working area around the forklift. Static or fully dynamic (under motion).
Occupancy Sensing
Integrated microwave sensor option allows adaptive lighting strategies and occupancy monitoring.
Daylight Harvesting
System wide detection of ambient light conditions reduces amount of “fill in” lighting required.
Task Tuning
Individual (or groups) of luminaires can maintain different target light levels to suit tasks being perform in their areas.
Zone Control
Luminaires can be grouped into zones for grouped control strategies (for example, loading bay vs aisle racking)
Addressable
Luminaries are uniquely addressable for unique control strategies (or sensor monitoring) independent of electrical wiring.
Continuous Dimming
Light level from 0-100% in 200+ steps for smooth lighting transitions. Ramp rates fully programmable.
Safe
No glass, mercury, UV or IR. No hazardous waste – recyclable.
Future Proof
Meets or exceeds DesignLights Consortium Intelligent Controls requirements 2016
Local Support
Designed & Manufactured in New Zealand
Technical Data
Light Source |
||
| Light Source: | 120 x Luxeon LED | |
| Light Output: | 17,000 lm nominal | |
| LED Efficacy: | 160 lm/W nominal | |
| Lamp Power: | 120W | |
| Operating Life: | > 60,000 hrs L90 Projected L70 > 250k hrs |
|
| Colour Temp: | White 5000K nom. | |
| Colour Rendering: | 70 CRI | |
| Output: | No UV or IR | |
| Dimming: | 0-100% | |
Power Supply |
||
| Power Supply: | Integrated within fitting | |
| Power Factor: | 98% throughout dimming | |
| Supply Efficiency: | ~98% | |
| Input Power: | 136W (125W @ 24V AC) | |
| Input Voltage: | 240V AC (or 24V AC/DC) | |
| THD: | <20% | |
| MTBF: | 3,500,000 hrs @ 25°C | |
| Connector: | IP68 LTW Type B | |
Environmental |
||
| Surge Protection: | Varistor 1.2kA 28J | |
| Ambient Temp: | -40°C to 50°C | |
| Operating Temp: | 61°C at 25°C ambient | |
| Fixture Efficacy: | 125 lm/W Typical | |
| Rating: | IP66 | |
